I-895 at Frankfurst Avenue Interchange Improvements Project

OVERVIEW

The Maryland Transportation Authority (MDTA) in coordination with Federal Highway Administration (FHWA) is advancing the I-895 at Frankfurst Avenue Interchange Improvements project in Baltimore City. This project will replace the existing toll plaza south of the tunnel portal with highway-speed all electronic tolling (AET). The project represents the final conversion of toll plazas under MDTA’s jurisdiction to AET. In addition, the project includes modification of the existing interchange ramps to accommodate highway speed tolling, replacement of 70-year-old I-895 bridges over Frankfurst Avenue and Childs Street, and realignment of the intersection at Frankfurst Avenue and Shell Road to provide safer northbound access to I-895. The project will provide safety benefits for motorists, bring heavily used MDTA highway assets into a state of good repair, and reduce congestion, emissions, and other air pollution.

This project will be delivered in three phases:

Phase 1: Toll Gantry Relocation: This phase will relocate the existing tolling infrastructure away from the physical toll booths to be prepared for Phases 2 and 3.  Work will involve pavement reconstruction on the I-895 ramps at Childs Street and establishing new tolling infrastructure using on-call contractors. New toll gantries will be constructed on the Childs Street ramps and on the I-895 mainline, just north of the tunnel. Construction is ongoing and the anticipated completion date will be the summer of 2025.

Proposed Overhead Toll Collection Gantries - Childs Street On and Off Ramps

Proposed Overhead Toll Collection Gantry - North of Harbor Tunnel

Phase 2: Frankfurst Avenue Reconfiguration: This phase will include the reconstruction of Frankfurst Avenue, the reconfiguration of Frankfurst Avenue and Shell Road intersection, the consolidation of southbound I-895 off ramps to Frankfurst Avenue, and the installation of a new traffic signal at the intersection of Frankfurst Avenue and the Masonville Cove Environmental Education Center. Design is underway and advertisement for construction is anticipated to be winter of 2025. Construction is anticipated to begin fall/winter of 2026. During construction, Frankfurst Avenue will be reduced to one lane in each direction with minimal traffic impacts to I-895. Overnight lane closures on I-895 are anticipated for the erection of new signage.

Phase 2 Interim Condition

Phase 3: Final I-895 Bridge Replacement and Configuration: This phase will remove the existing toll plaza, replace the 70-year-old bridges over Frankfurst Ave and Childs Street, and complete the interchange reconfiguration on the mainline of I-895. Construction is anticipated to begin in 2029, after the new Francis Scott Key Bridge is open to traffic.

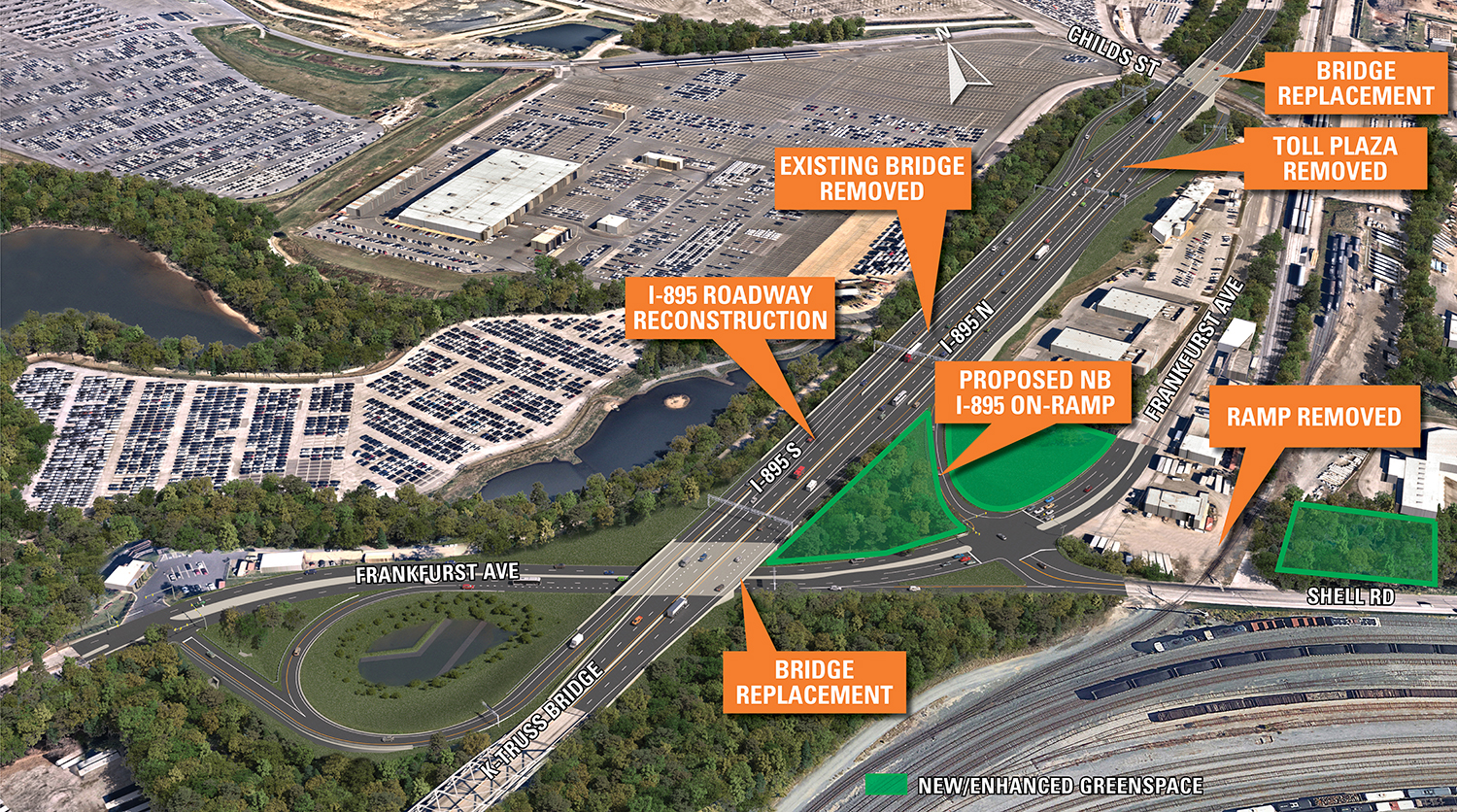

Phase 3 Final Condition

PROJECT INFORMATION

• I-895 Baltimore Harbor Tunnel Toll Plaza and Interchange Improvements Project - Fact Sheet - March 2025 (PDF Download)
• Cardin, Van Hollen, Moore Announce $80 Million for Baltimore Harbor Tunnel Improvements - January 12, 2024
• I-895 Industry Forum - Event Flyer July 2023 (PDF Download)
• I-895/Baltimore Harbor Tunnel Toll Plaza and Interchange Improvements Project - Virtual Public Meeting Flyer December 2020 (PDF Download)
• I-895/Baltimore Harbor Tunnel Toll Plaza and Interchange Improvements Project – Press Release December 2020
• I-895/Baltimore Harbor Tunnel Toll Plaza and Interchange Improvements Project – Frequently Asked Questions December 2020 (PDF Download)
